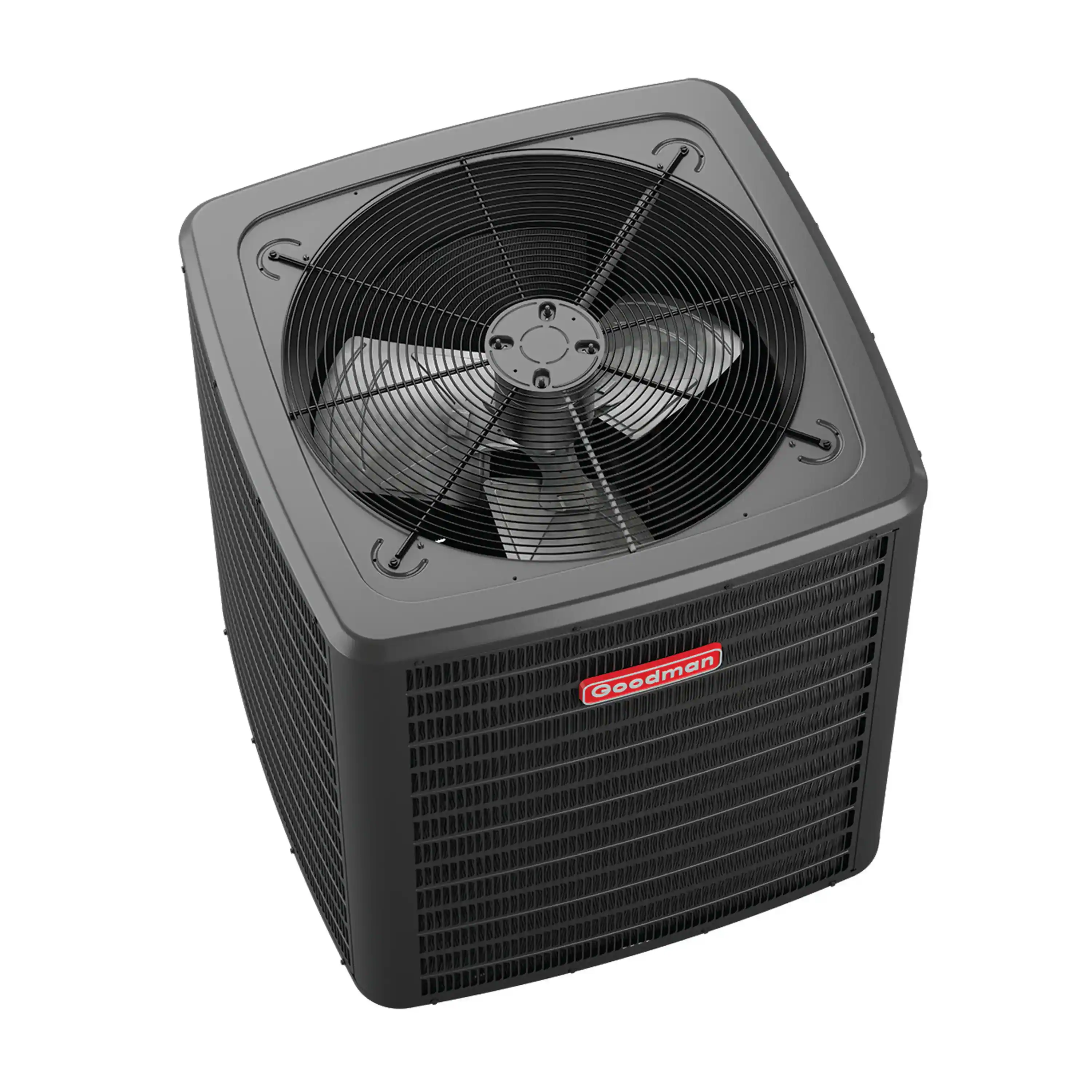

The Goodman GLXS4M Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 3 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

• High-Efficiency Scroll Compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• 5mm diameter copper tube/enhanced aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Enclosed contactor with lug connection
• Ground lug connection
• High-pressure switch
• AHRI Certified
• ETL Listed

The Goodman GDVM97 Gas Furnace delivers premium 97% AFUE efficiency with a variable-speed ECM blower and self-calibrating modulating gas valve for ultra-precise comfort at 80,000 BTUH. Features ComfortNet™ communicating compatibility and stainless-steel sloped secondary heat exchanger. Multi-position downflow/horizontal installation.

• Heavy-dutyluminized-steel tubular heat exchanger
• Efficientnd quiet variable-speed Blower
• Stainless-steel sloped secondary heat exchanger
• Self-calibrating modulating gas valve
• ComfortNet™ Communicating System compatible
• Silicon Nitride igniter
• Dual 7-segment display
• Color-coded low-voltage terminals
• Modulating gas valve
• 10.ll models comply with California 40 ng/J
• 11.HRI Certified - ETL Listed
• 1Energy Star
• 1Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers

• Multi-position installation: downflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
• Easy to install top venting with optional side vent
• Convenient left or right connection for gasnd electrical service
• Cabinetir leakage (Qleak) less than or equal to 2%
• Fully insulated heat exchangernd blower section
• Bottom or side returnirpplications
• Heavy-gage steel cabinet with durable

The Goodman CHPTA AlumaFin7 horizontal evaporator coil is an all-aluminum coil optimized for R-32 refrigerant with horizontal A application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifold including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications
• Horizontal application
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pan featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified
• ETL Listed

• Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
