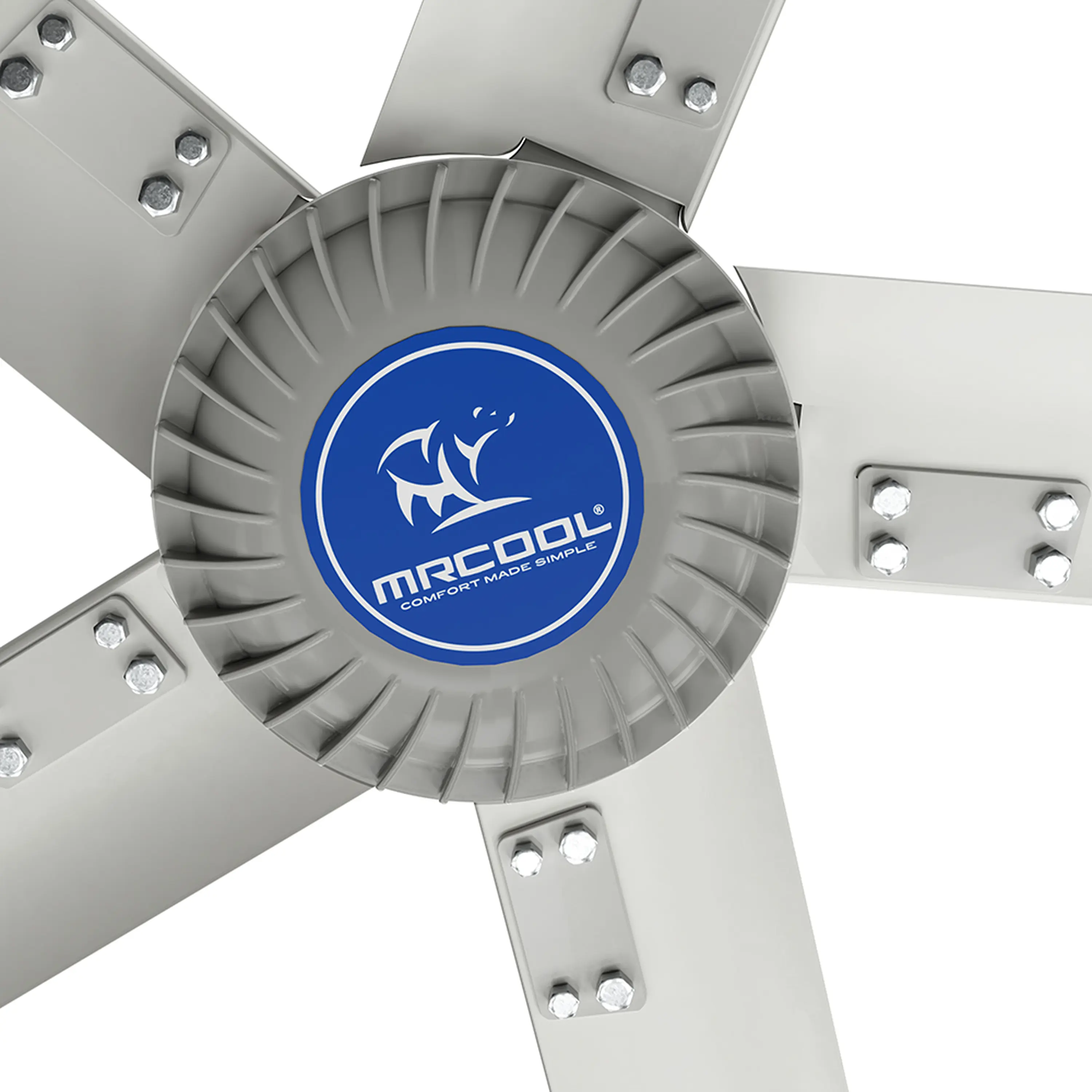

MRCOOL CoolBlade Industrial HVLS Fan (MCFAN16PBGR)

Safety Features

• Reinforced Magnesium Alloy Blades
• Integrated Motor Bracket
• Anti-Falling Expansion Sleeve
• Steel Wire Safety Rope
• Electrical Overload Protection
• Locking Control Box with Emergency Stop

Control System

• Electrical Protection
• Push-Button Speed Control
• Four-Button Operation
• Digital Display
• Ip66 Protection

Other Specs

• Mounting Bracket: I-beam/square steel/concrete
• Number of Blades: 5
• Motor Weight (lbs): 48.5
• Fan Weight (lbs): 136.7
• Air Volume (m3/min): 10000

Diameter-ft (m)	16 (5)
Voltage (V)	220-240
Phase	1
Cycle	60
Max Coverage Area	1640 sqft
Decibel Rating (DBA)	38
Base Parts Warranty	2 Years
Power (kW)	0.75
Frequency (Hz)	50/60
Air Volume (m3 /min)	10000
Rotating Speed (rpm)	80
Number of Blades (Pcs)	5
Noise (dB(A))	38
Motor Weight (lbs)	48.5
Fan Weight (lbs)	136.7
Coverage Area-ft2 (m2)	1640 (500)
Mounting Bracket	I-beam/square steel/concrete
