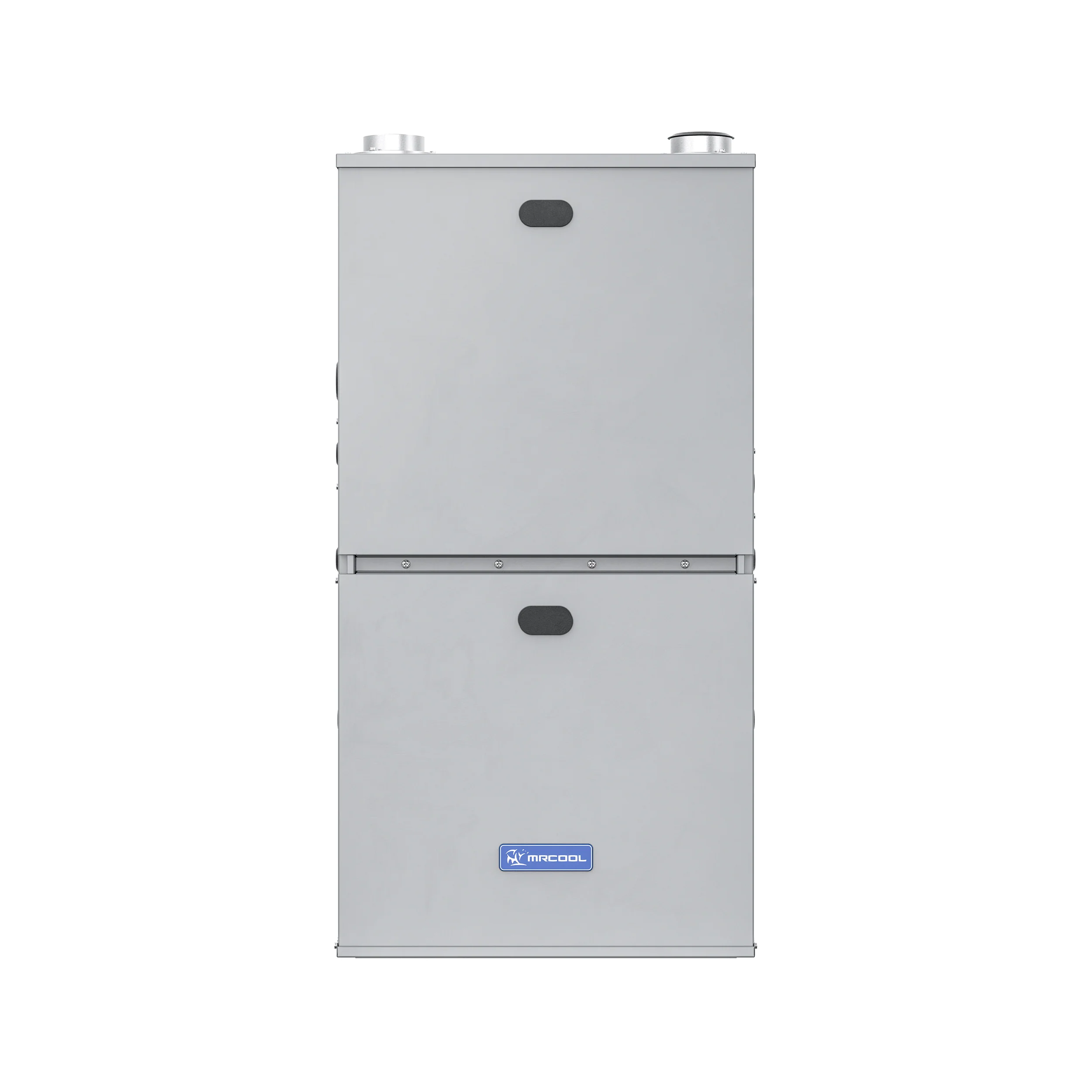

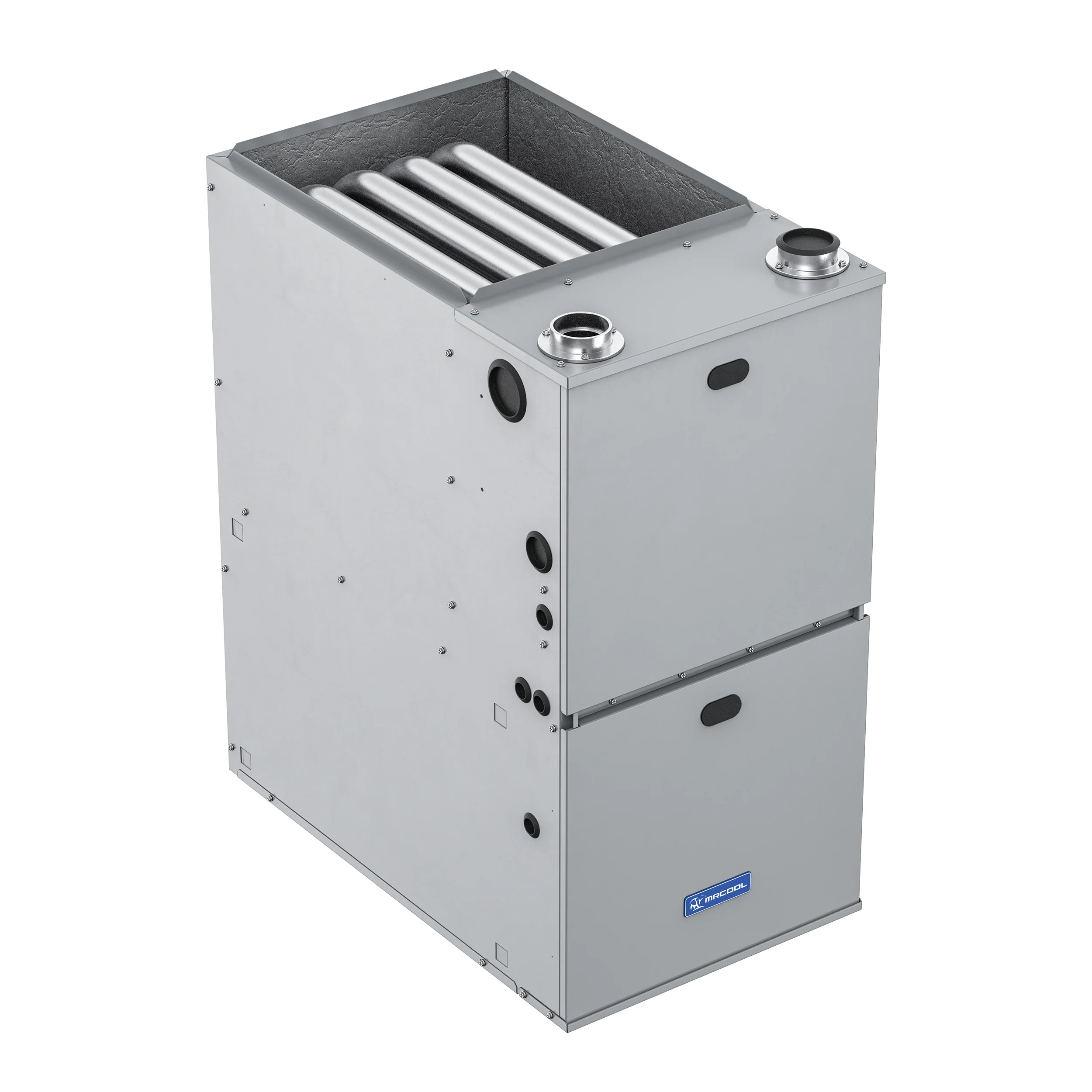

MRCOOL VersaPro 100K BTU, 96% AFUE, Multi-position, Gas Furnace (MGM96EE100C5NB)

In the face of the most extreme and bitter winters, the MRCOOL® VersaPro™ 100k BTU 96% AFUE Gas Furnace provides the highest quality heating comfort, blending quiet operation with remarkable performance. Thanks to its two-stage, consistent torque DC motor and impressive 96% AFUE rating, this furnace’s energy efficiency ensures substantial savings on utility expenses. Constructed with an aluminized steel tubular heat exchanger and a stainless steel secondary heat exchanger, it boasts not only durability but also reliability. Installation is a breeze, even in confined spaces, thanks to its adaptable design.

The furnace caters to multi-position installations in either upflow or horizontal configurations and provides convenient left or right connections for gas or electric service. Featuring a removable bottom panel, the unit can accommodate side or bottom return applications with ease. Moreover, conversion to propane is simple with an optional LP kit. Being both AHRI certified and ETL listed, this furnace has undergone rigorous testing to meet the most stringent standards in HVAC. Registering the furnace within 90 days unlocks additional peace of mind, with a 10-year parts warranty and a lifetime warranty on the heat exchanger. Even without registration, you're safeguarded by a 5-year parts warranty and a 20-year heat exchanger warranty, ensuring enduring comfort and protection.

Features

• Intertek Cert: 3124627

• Filter Size:
   Side Return: 16x25x1
   Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
• Quiet Operation

• Superior Performance

• Durable Build & Finish

• Optional LP Kit

• Multi-Position Application

• 96% AFUE

• Two Stage

• Energy Efficient

• Compact Design


Dimensions	28.74" D x 33.74" H x 20.98" W
Afue	96
Fuel Type	Natural/Propane Gas
BTU Input	100000
BTU Output	95000
Voltage (V)	115
Phase	1
Cycle	60
Stage	Two
Max Fuse Breaker (A)	20
Min Circuit Ampacity (A)	11.5
Color	Gray
Full Load	11.5
Condenser Fan Motor Type	ECM
Condenser Fan Motor HP	1
Condenser Fan Motor RPM	1050
Filter Type	replaceable
ETL Listed	yes
AHRI CERTIFIED	yes
Registered Parts Warranty	10 Years
Base Parts Warranty	5 Years
Registered Heat Exchanger Warranty	Lifetime
Base Heat Exchanger Warranty	20 Years
Contains Electronics	Yes
Proposition 65 Warning	Yes
Net Weight (lbs)	153.5
