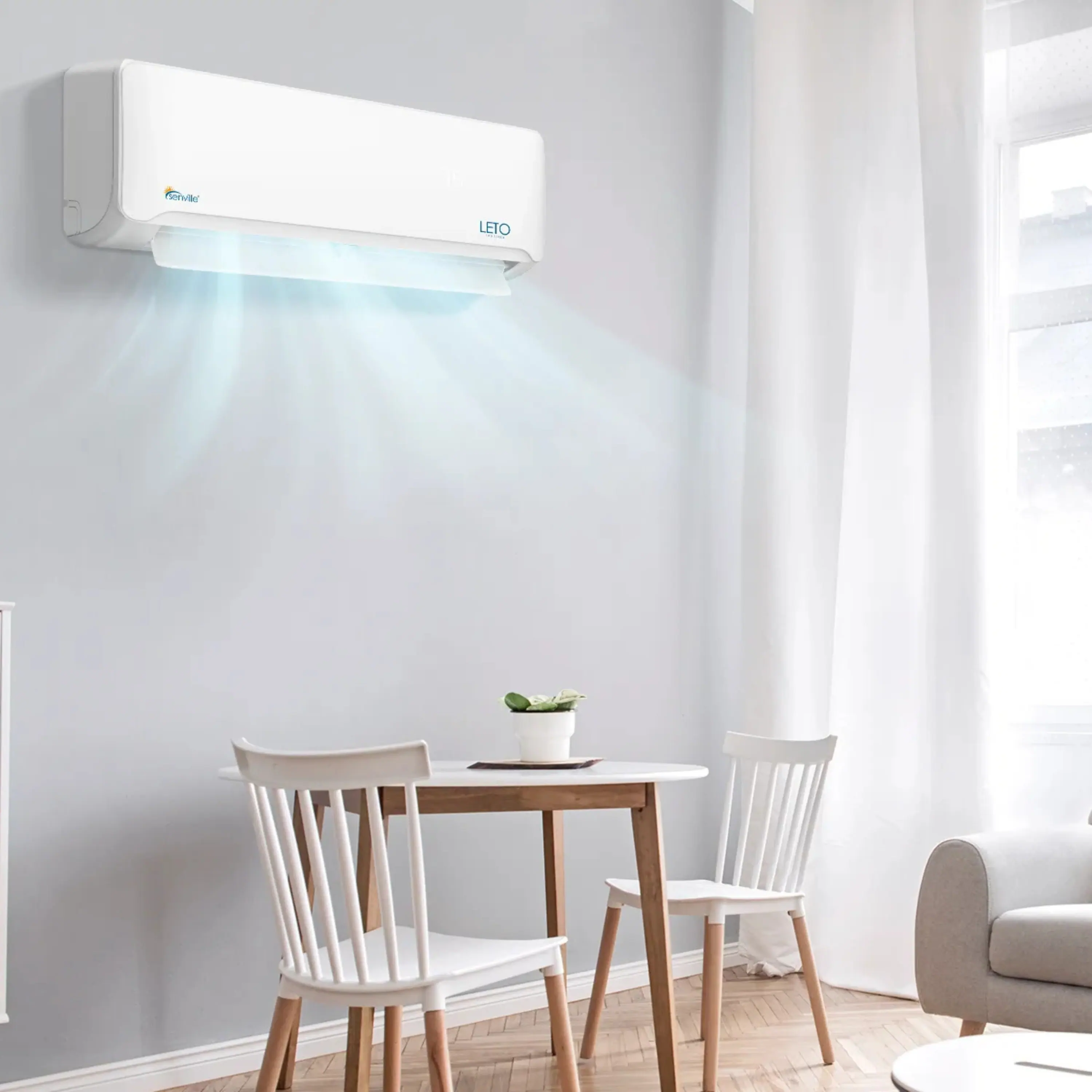

The Senville SENL-24CD-L is a 24000 BTU mini split air conditioner and heat pump that offers a versatile and affordable solution to cooling and heating your home or business.

Features

• 18.7 SEER2 High Efficiency -  Save energy while cooling and heating efficiently.
• DC Inverter Technology - Reduces energy use by up to 48% yearly.
• Ideal for 1000–1250 sq. ft. - Perfect for bedrooms, offices, and living spaces.
• Heating down to -15°C (5°F) - Reliable warmth even in colder climates.
• Dehumidifier, Fan & Turbo - Complete climate control at your fingertips.
• Smart Home Integration with Alexa - Control your Senville mini split air conditioner with Alexa voice or app. Adjust temperature, set routines, and manage multiple rooms remotely—ideal for vacation homes or energy savings on the go.
• Energy-Saving Inverter Technology - Experience energy savings up to 48% annually with eco-friendly inverter technology. Automatically adjusts to maintain your comfort while reducing costs.
• Quiet Operation & Sleep Mode - Enjoy whisper-quiet operation as low as 27 dB. Sleep Mode gradually adjusts temperatures overnight for energy efficiency and comfort.
• 5-Year Manufacturer's Warranty - Includes 5-year compressor & parts warranty with North American support for peace of mind and reliable service.
• Installation Kit + Accessories Included - Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

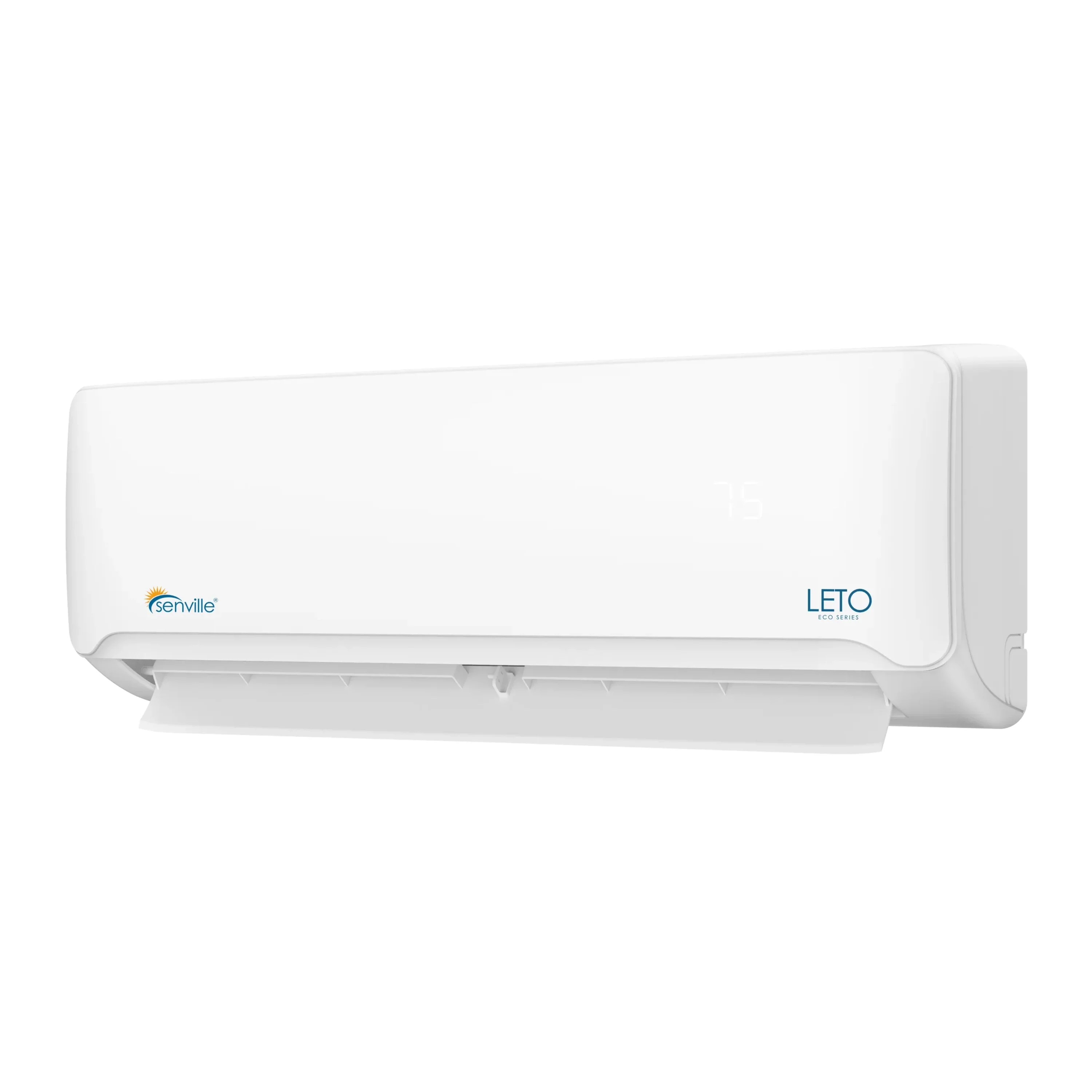

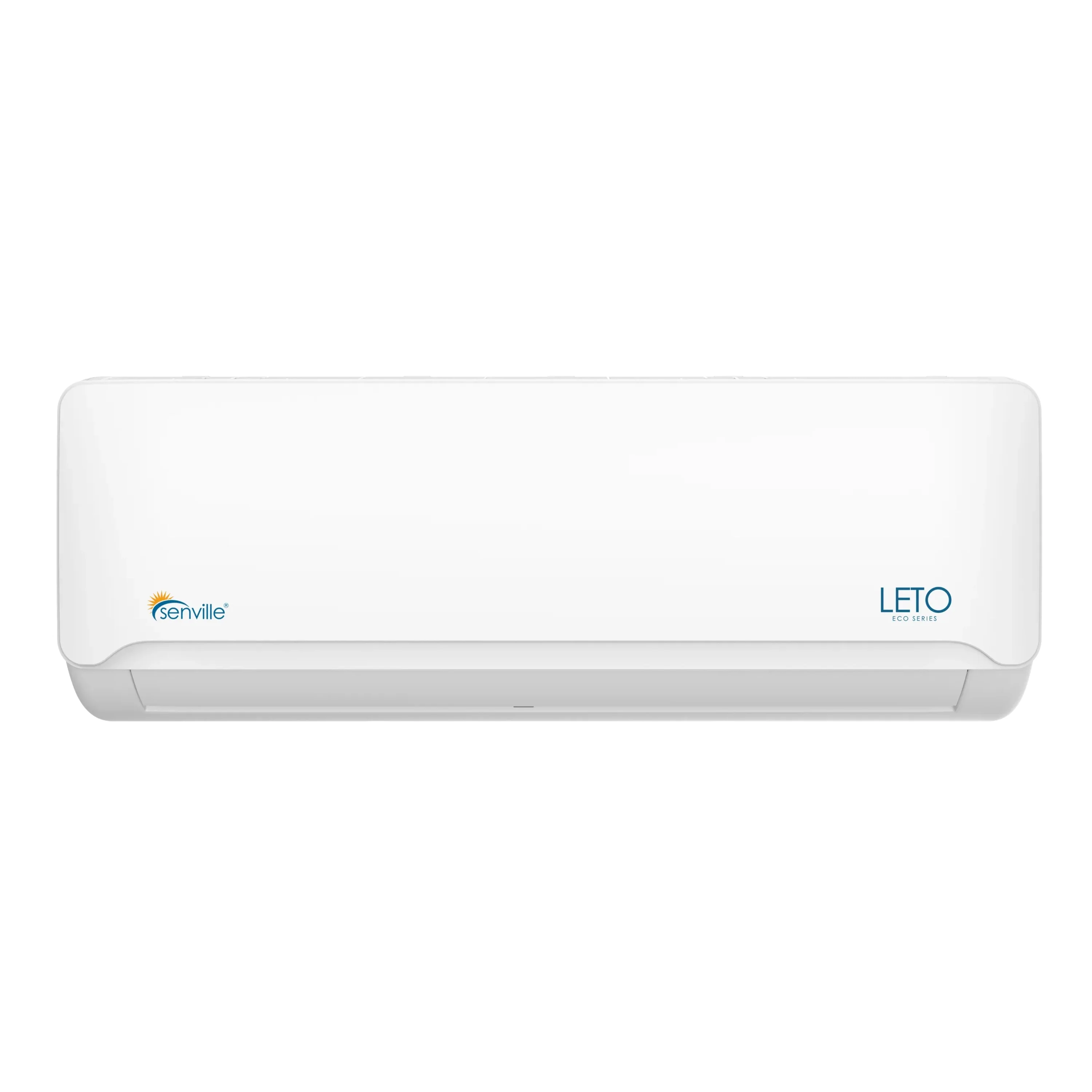

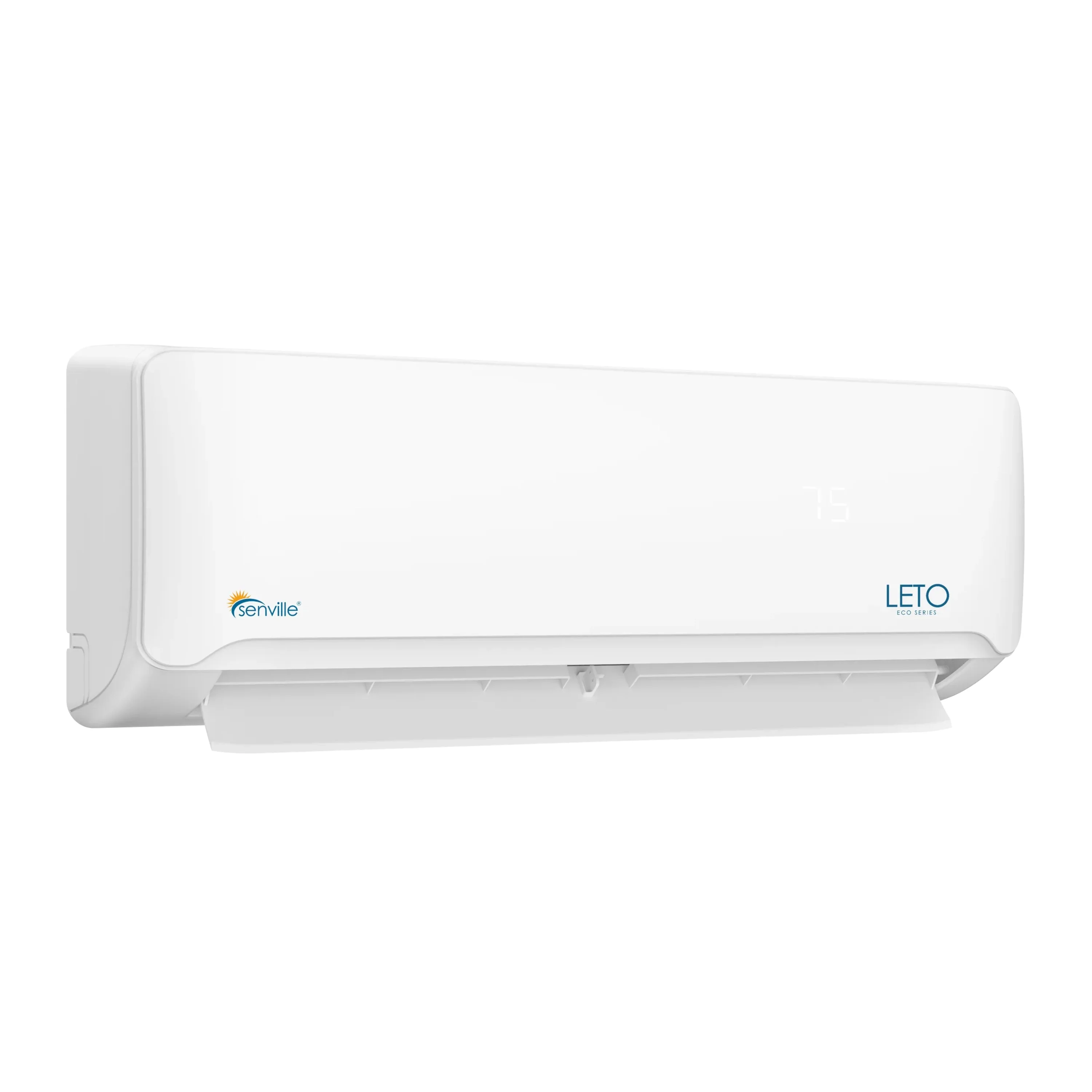

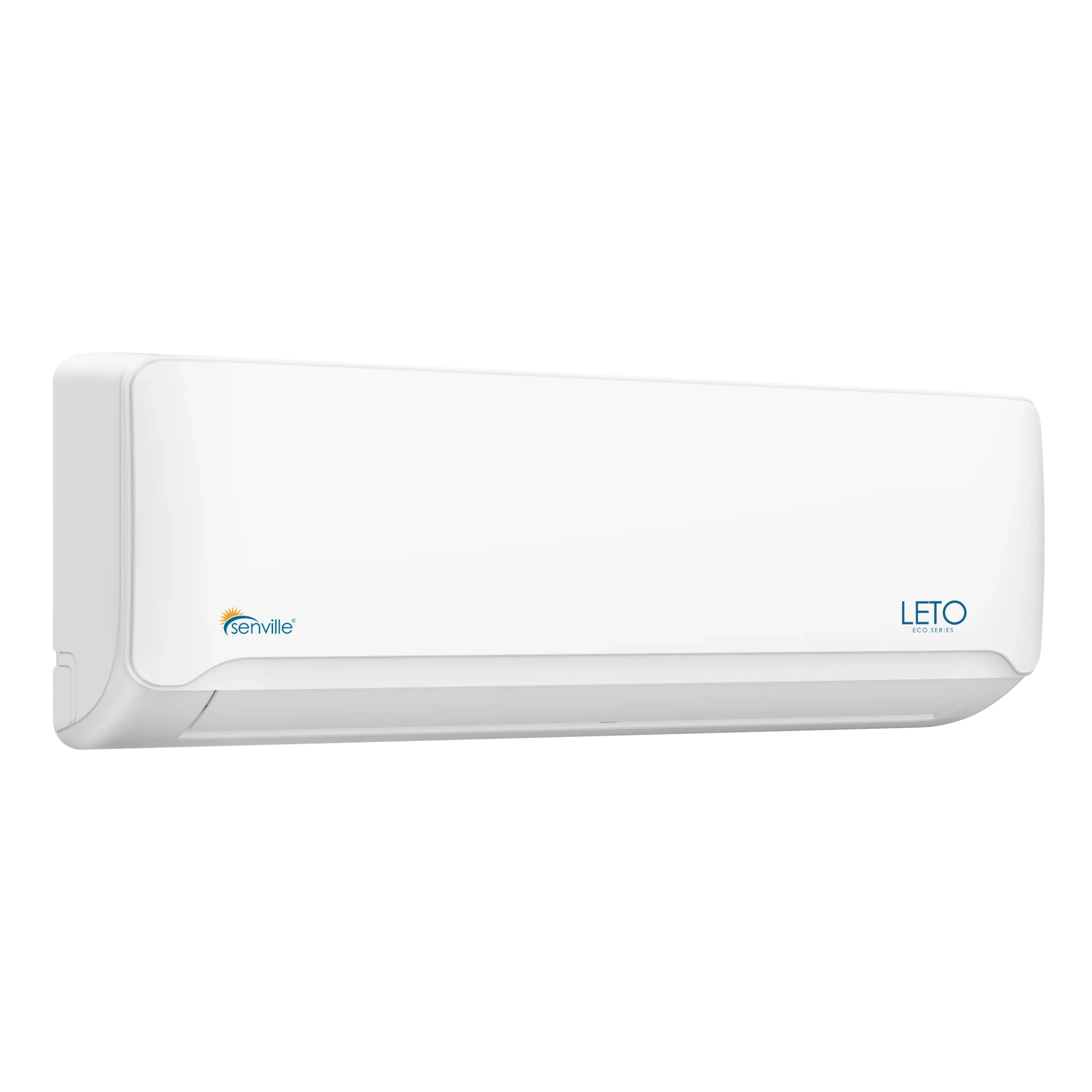

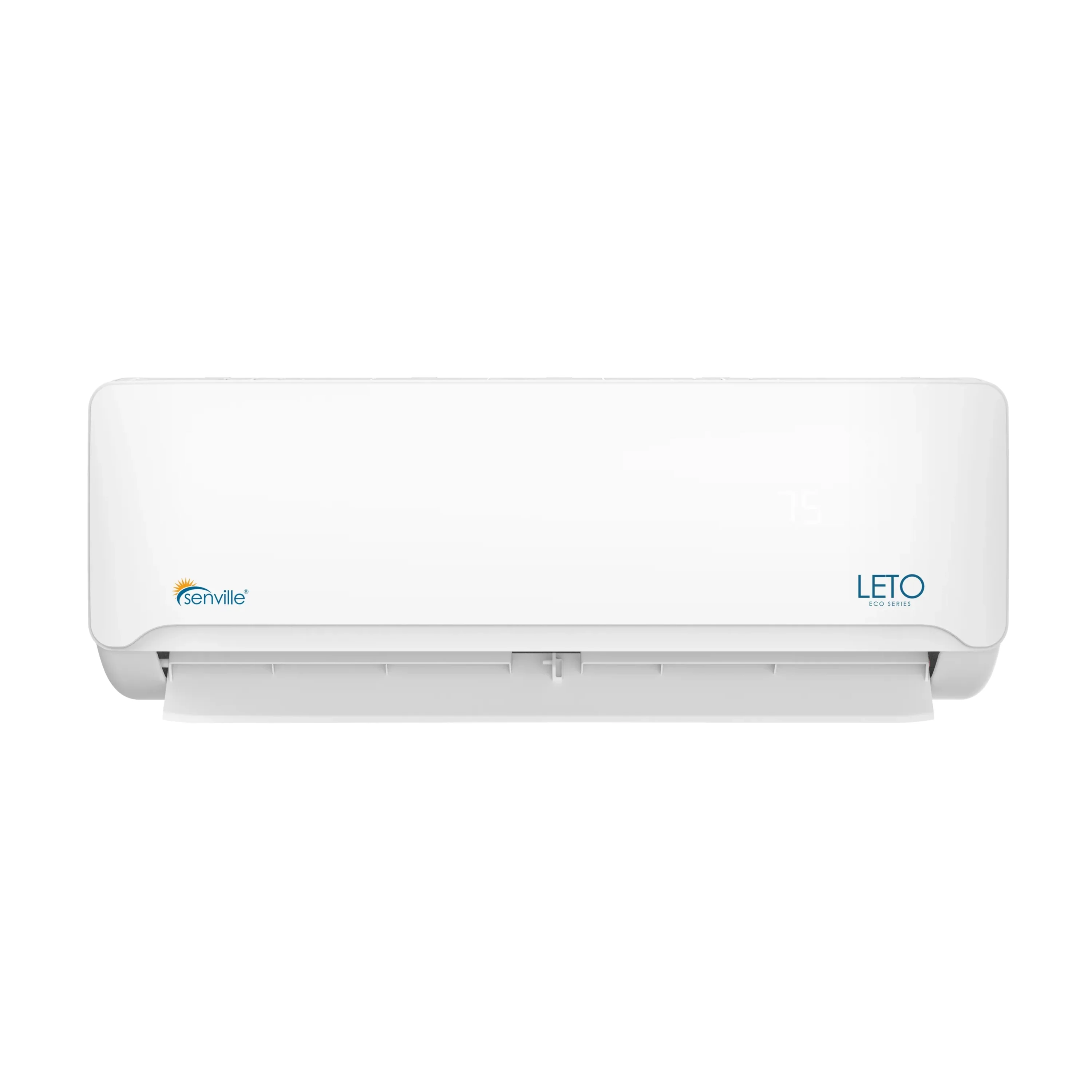

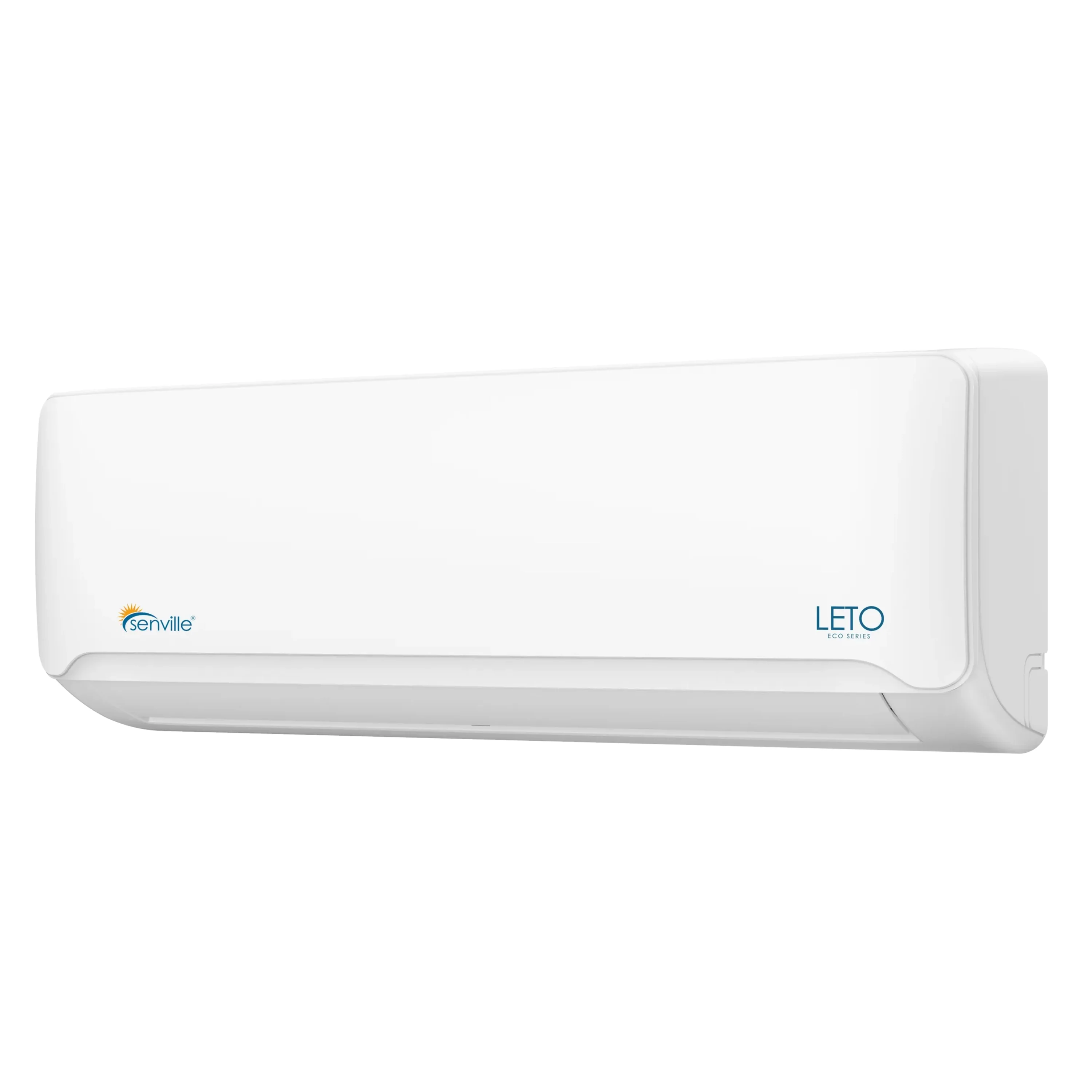

• Indoor Unit

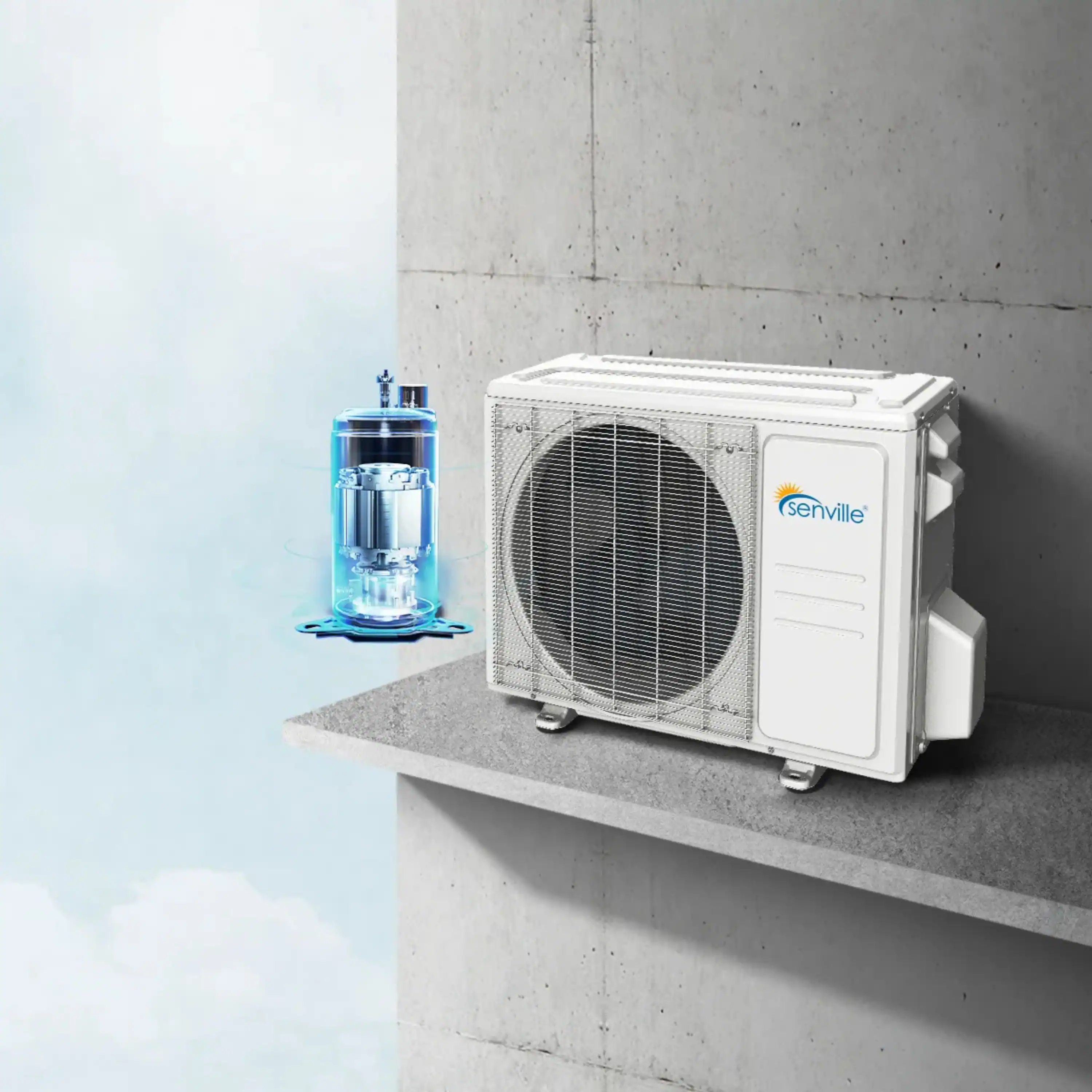

• Outdoor Unit

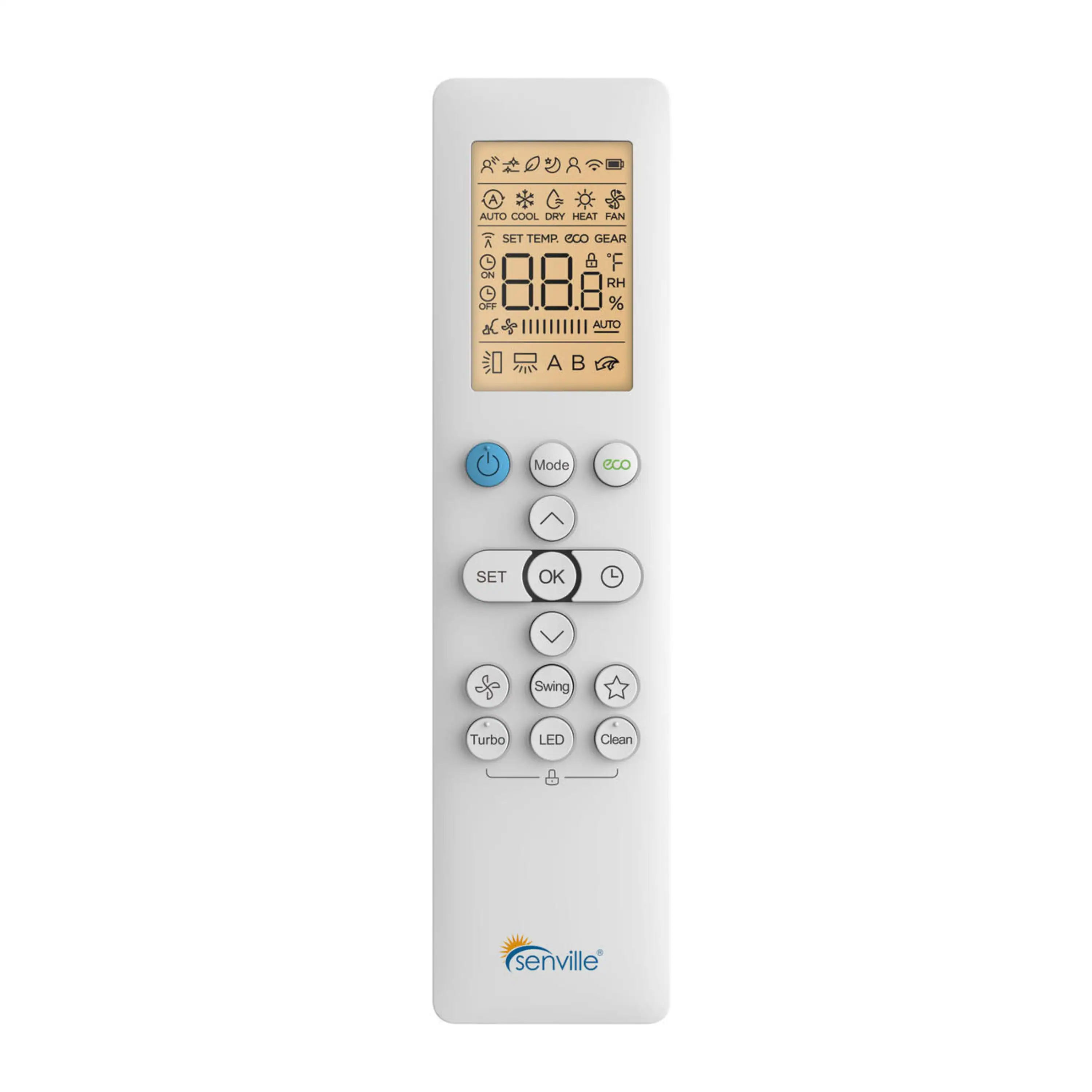

• Wireless Remote Control

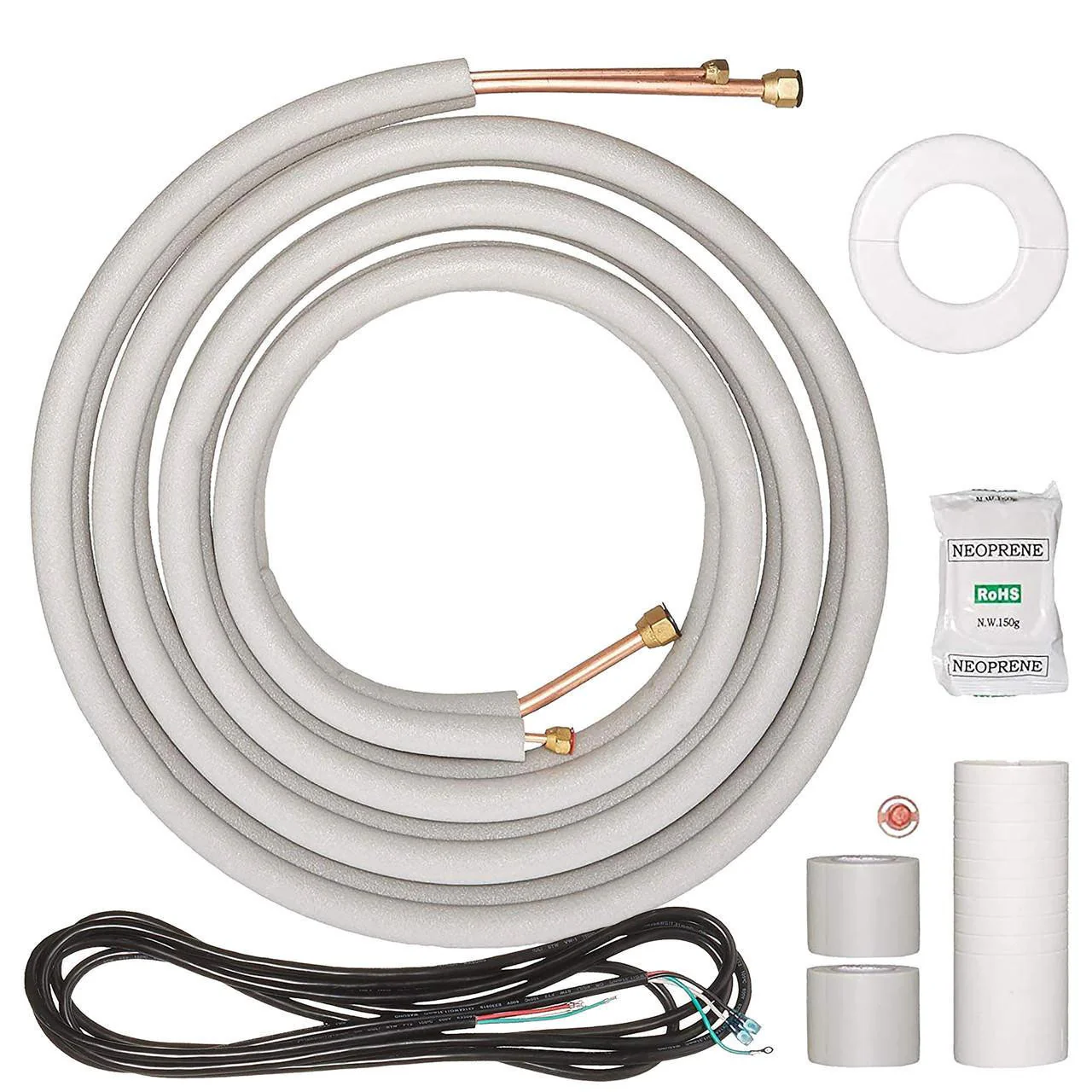

• 16 ft. Installation Kit

• Indoor to Outdoor Wiring Harness

• Alexa USB Kit

• Installation Manual

• User’s Manual

• Manufacturer Warranty

Condenser
Dimensions (WxDxH) (in.)	35.04 x 13.46 x 26.50
Weight	94.58 lbs.
Air Flow (Max) CFM	1764.7
Noise Level dB	59.5
Air Handler
Dimensions (WxDxH) (in.)	2.52 x 8.90 x 13.19
Weight	30.64 lbs.
Air Flow (Turbo/H/M/L) CFM	729.9 / 529.7 / 400.2 / 329.6
Noise Level (Turbo/H/M/L) dB	56.5 / 50.5 / 44.5 / 34
Technical Specifications
SEER2	18.7
EER2	10
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
Cooling Capacity (BTU)	24000
Cooling Range (BTU)	5500~24200
Cooling Input Range (W)	480~2590
Cooling Current Range (A)	2.1~11.3
Heating Capacity (BTU)	24000
Heating Range (BTU)	6300~27000
Heating Input Range (W)	410~2690
Heating Current Range (A)	2.2~11.8
HSPF2-4	9.3
HSPF2-5	7.3
COP W/W	3.31
Minimum Circuit Ampacity (A)	19
Max. Fuse (A)	20
Moisture Removal (L/H)	3
Refrigerant Type	R454B
Refrigerant Pre-charge	25 ft.
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	5 Years Compressor / 5 Years Parts
Certification	ETL Certified/ AHRI Certified
