Summary

• High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
• Cooling capacity: 24,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
• Heating capacity: 24,600 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

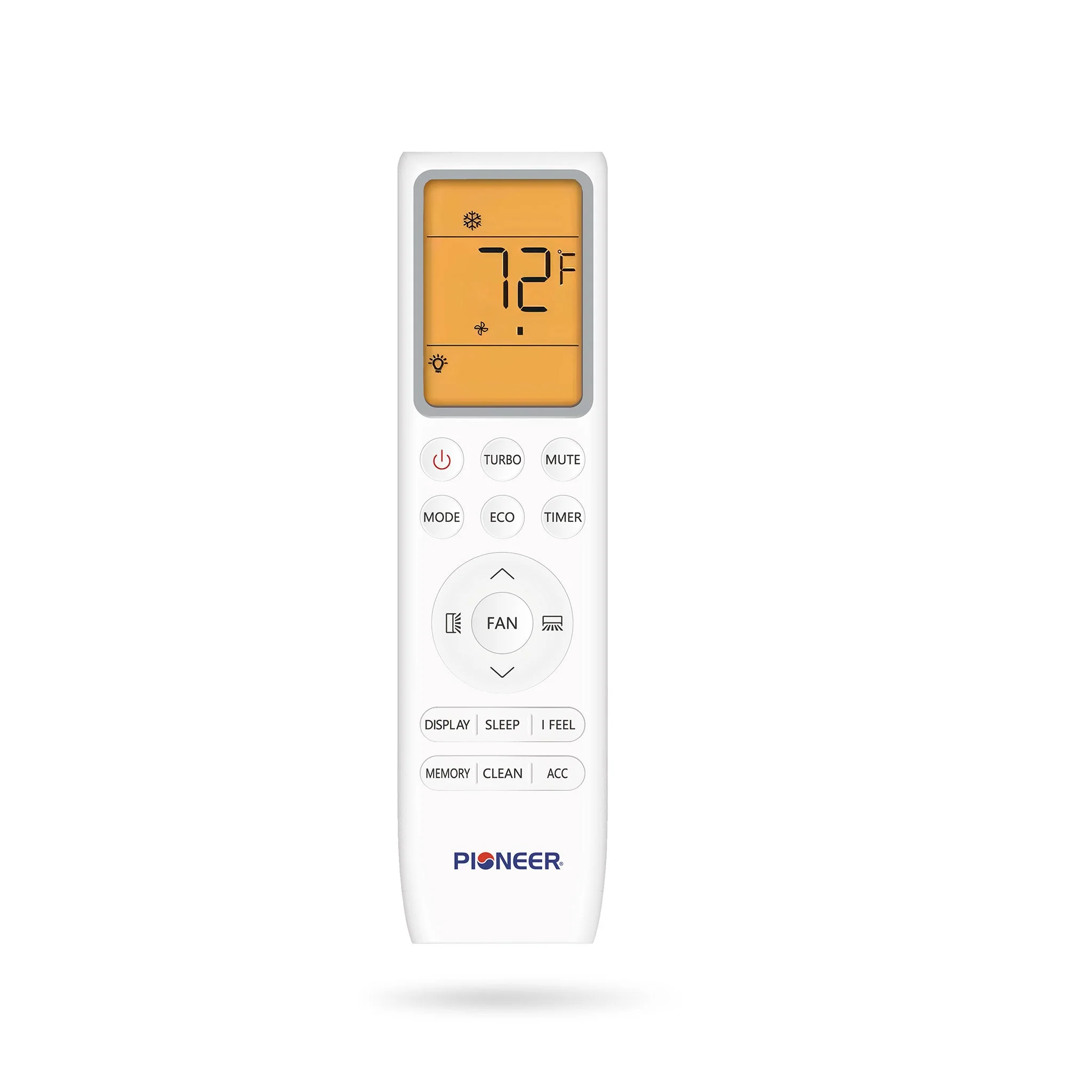

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Diamante Pro™ High-Wall Series

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.

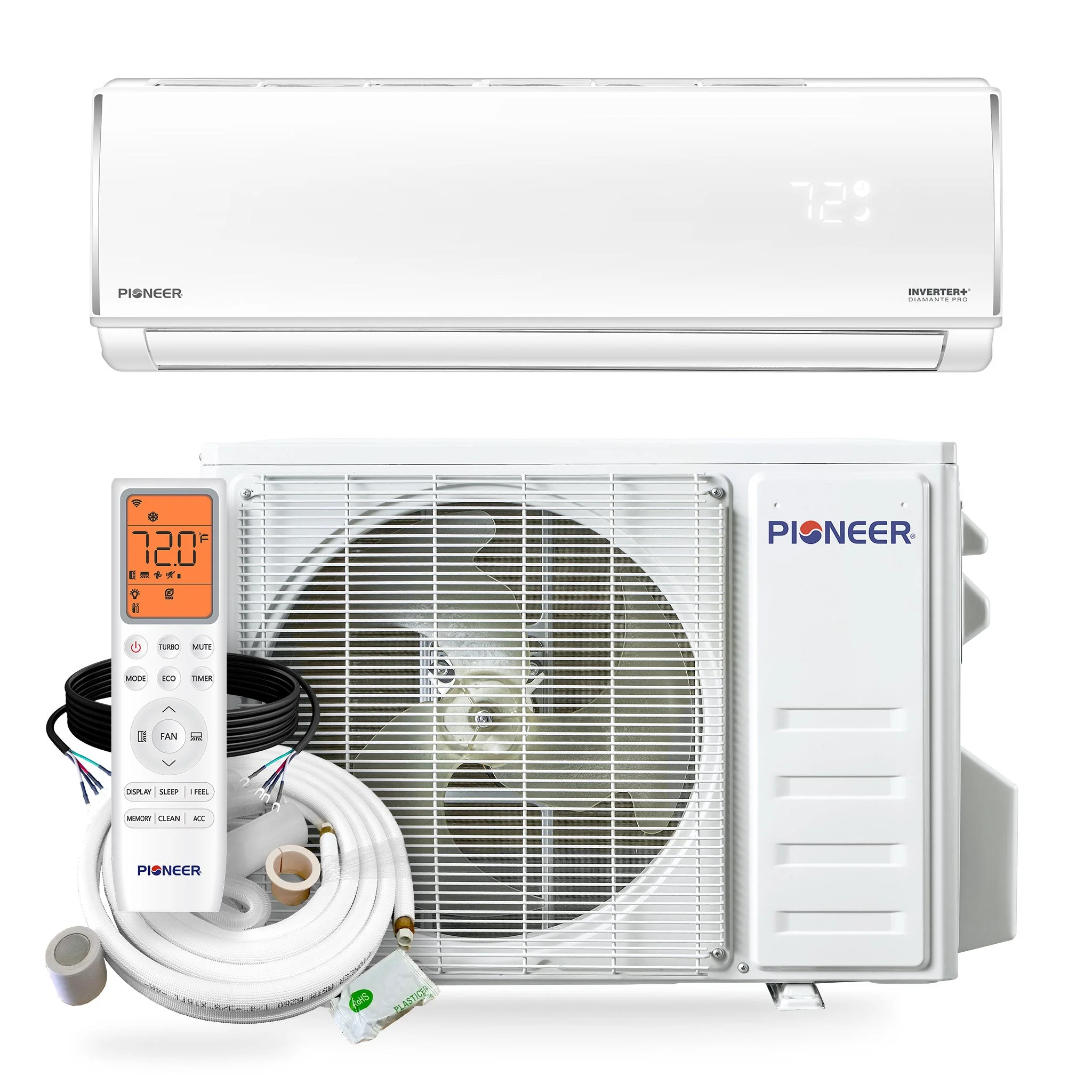

What's Included in Your Purchase

• Indoor Unit

• Outdoor Unit

• Wireless Remote Control

• Remote Control Wall Holder

• Remote Control Batteries

• 16 Ft. Copper Lines

• 16 Ft. Electrical Wire

• 10 Ft. Drain for indoor/outdoor

• Wall Passage Sleeve

• Putty for Wall Hole

• Leak Guard Sealer

• Wrapping Tape

• Installation Manual

• User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts

• Up to 5 years Warranty for Compressor

System Kit
Power Supply:	208~230V, 60Hz, 1Ph
Cooling Rated Capacity:	24,000 BTU/h
Cooling Capacity Range: 5	,100 ~ 25,200 BTU/h
Cooling SEER2:	21.0 BTU/W.h
Cooling EER2:	11.0 BTU/W.h
Heating Rated Capacity:	24,600 BTU/h
Heating Capacity Range:	5,100 ~ 25,900 BTU/h
Heating HSPF2 (Region IV):	9.5 / 8.2 BTU/W.h
Heating C.O.P.2 (47°F/5°F):	3.41 / 2.1 W/W
Refrigerant Type:	R454b
Recommended Room Size:	750~1000 sq ft
Minimum Room Size:	51 sq ft
Minimum Installation Height:	6 ft
Piping Diameter:	1/4 x 1/2"
AHRI Reference:	217048745

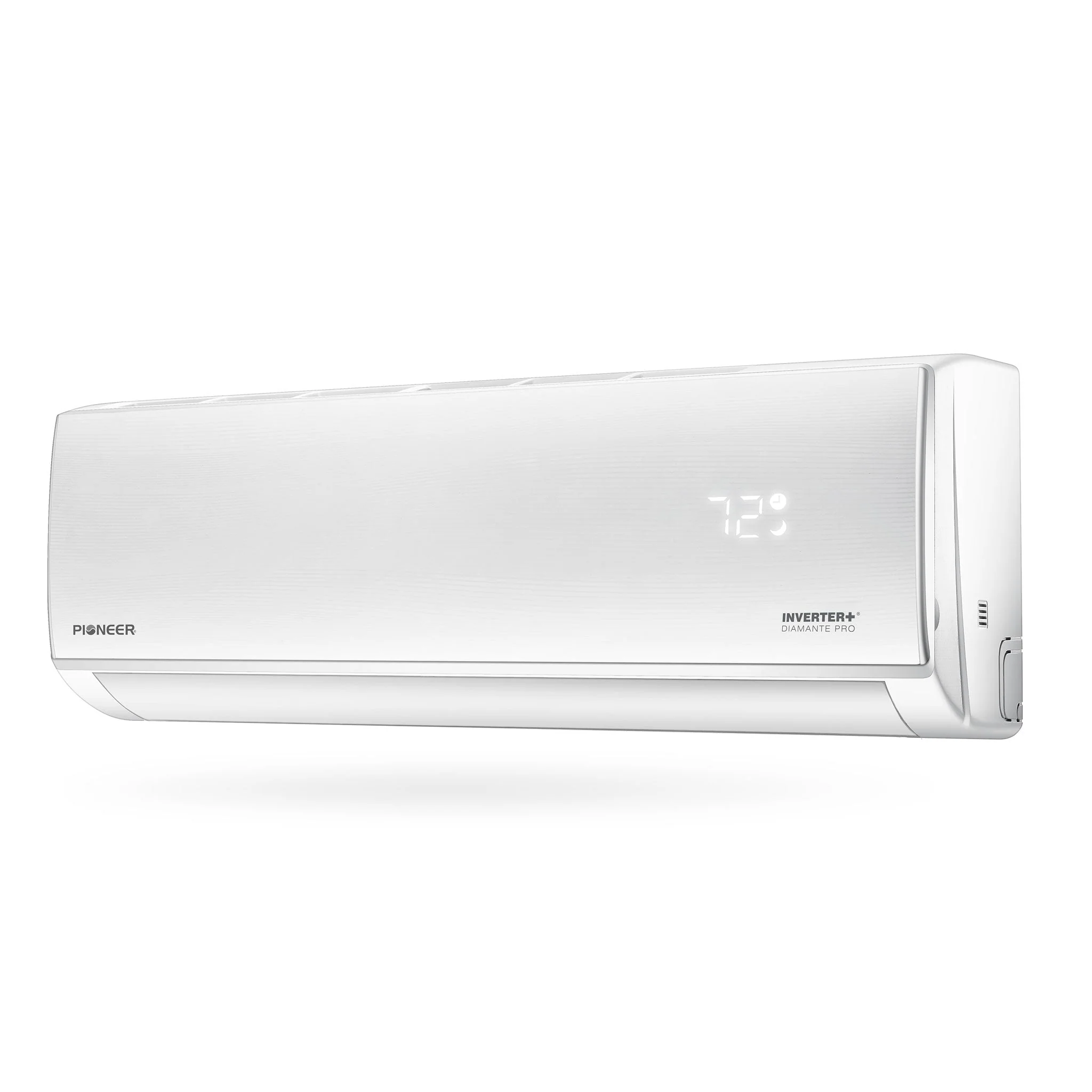

Indoor Unit
Part Number:	WT024GLSI20HLF
Air Flow (Turbo/Hi/Med/Lo/Mute):	847 / 705 / 588 / 470 / 412 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute):	52 / 49 / 43 / 38 / 36 dB(A)
Product Dimensions (WDH):	46-7/8 x 10-1/4 x 14-1/4 Inches
Carton Dimensions (WDH):	49-5/8 x 13 x 17 Inches
Net / Gross Weight:	36.4 / 43 lbs.

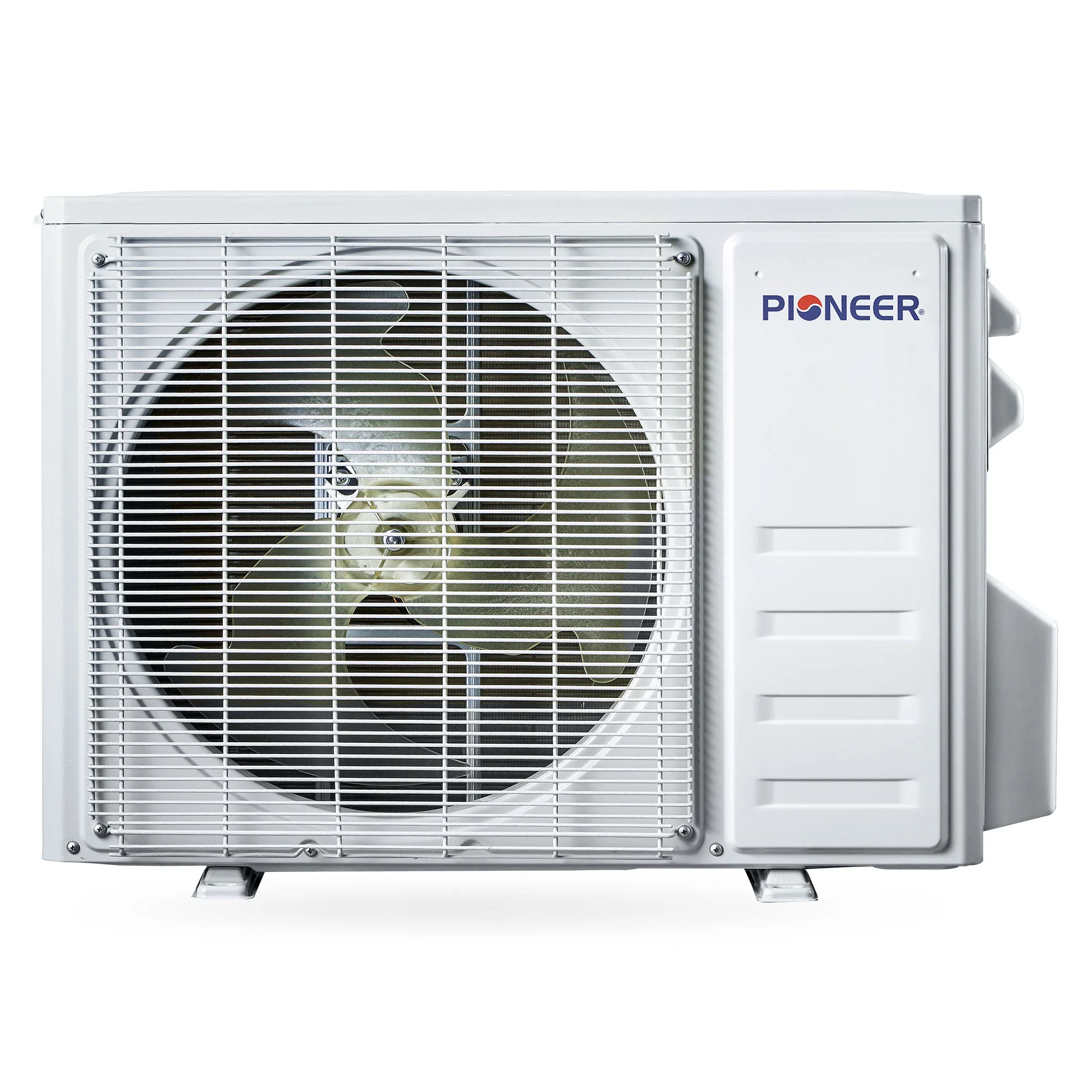

Outdoor Unit
Part Number:	YN024GLSI20RPF
Breaker Needed:	20A (double-pole)
Sound Level:	58 dB(A)
Net Dimensions (WDH):	36-1/2 x 14-7/8 x 27-1/2 Inches
Carton Dimensions (WDH):	37-3/4 x 17-1/8 x 30-1/2 Inches
Net / Gross Weight:	88.2 / 103.6 lbs.
