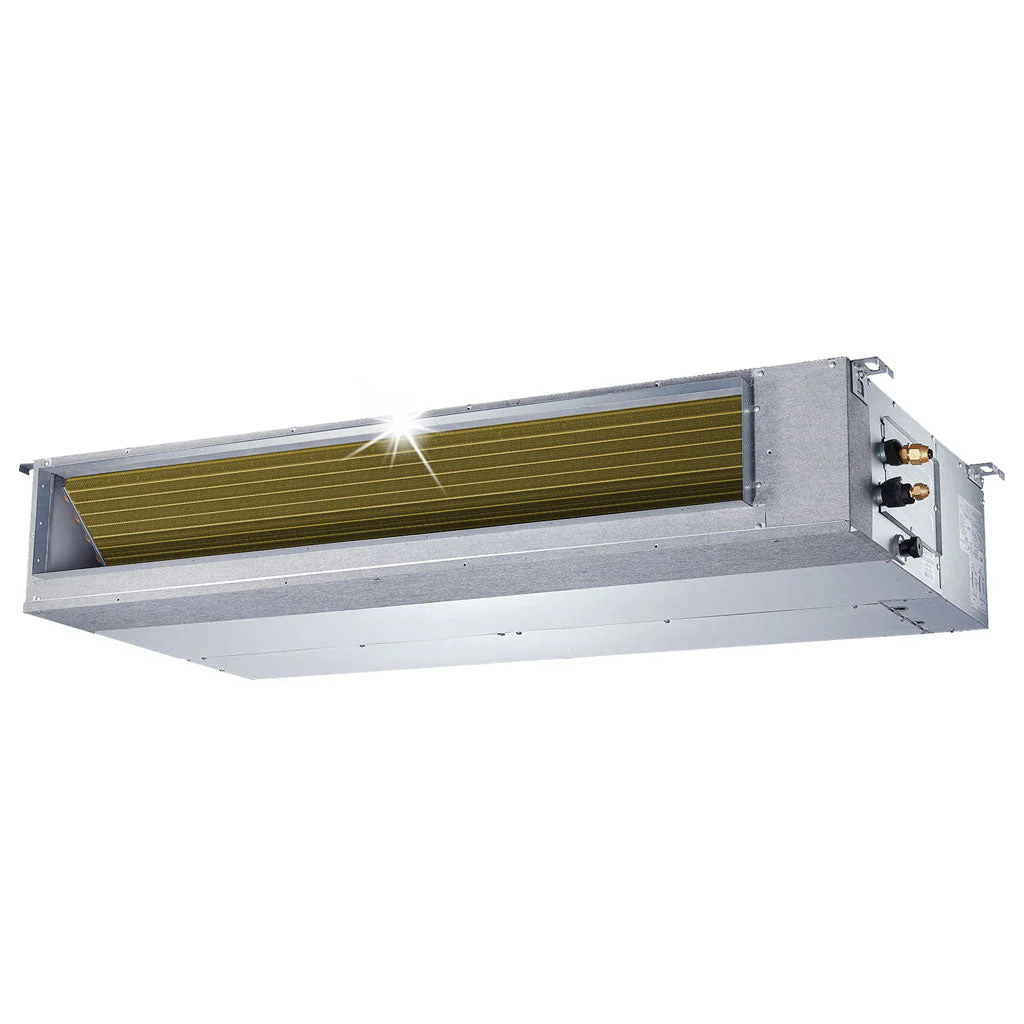

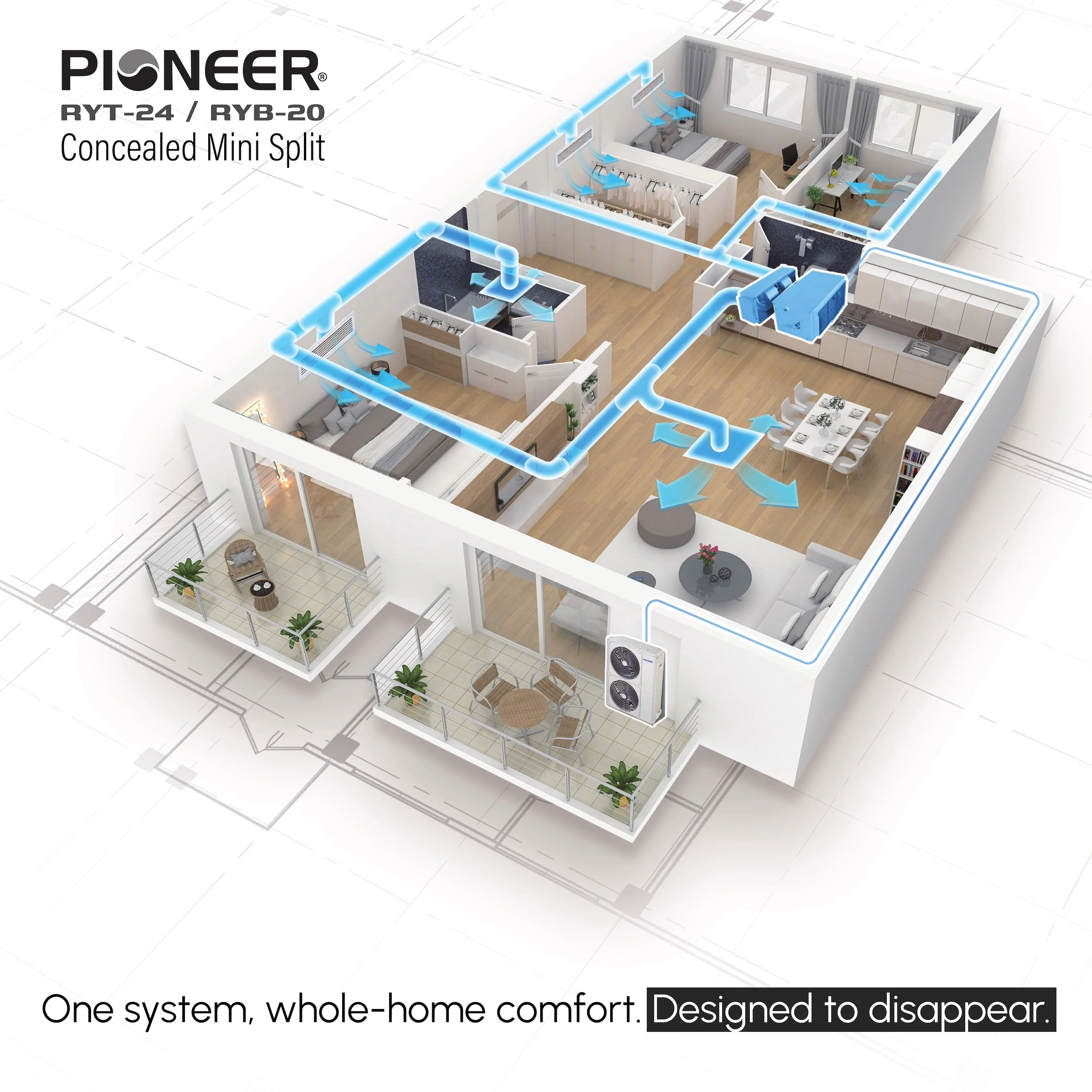

The Pioneer Quantum Ultra 36,000 BTU Slim-Duct Ceiling Concealed Mini-Split delivers high-efficiency whole-home comfort for spaces up to 1,400 sq ft, hidden cleanly above the ceiling for a seamless architectural finish. Variable-speed DC inverter technology powers 36,000 BTU of cooling at 18.7 SEER2 and 40,000 BTU of heating at 10.2 HSPF2, performing reliably from -13°F to 131°F on a single 40A 208/230V circuit.

Factory-precharged with low-GWP R454b refrigerant, this heat pump features cooling, heating, dry, and ventilation modes, dual-drainage ports, washable filters, and dual-axis motorized airflow. The included remote unlocks ECO, SLEEP, TURBO, MEMORY, FOLLOW ME, Timer, and Self-Clean for intelligent year-round comfort.

Summary

• High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
• Cooling capacity: 36,000 BTU/H with 18.7 SEER2 / 10.1 EER2 efficiency
• Heating capacity: 40,000 BTU/H with 10.2 HSPF2 / 3.7 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Slim-Duct Ceiling Concealed Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • FOLLOW ME, to Detect and Adjust to Local Temperature

Dimension Chart
