Senville SENA-09HF/ID is a high-efficiency 9000 BTU concealed duct mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 21.4 SEER2 ENERGY STAR - Save up to 40% on energy costs annually.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.

• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
• Professional Installation - Required to maintain warranty coverage.

• ENERGY STAR Certified - Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

• Indoor Unit

• Outdoor Unit

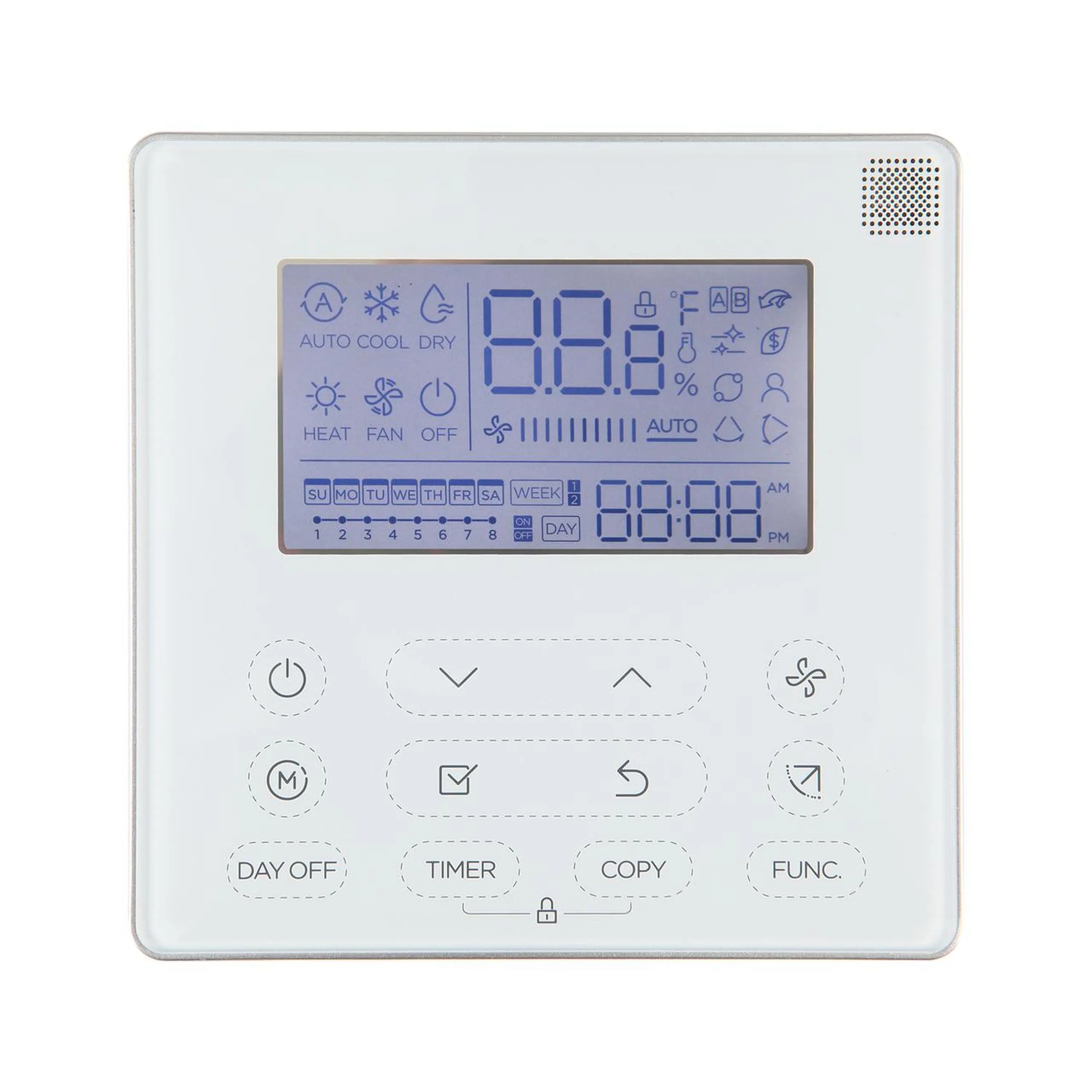

• Wireless Remote Control

• Installation Kit

• Indoor-Outdoor Wiring Harness

• Installation Manual

• User’s Manual

• 10-Year Manufacturer Warranty

Condenser
Dimensions (WxDxH) (in.)	31.69 x 12.99 x 21.81
Weight	72.75 Lbs
Air Flow (Max) CFM	1470.6
Noise Level dB	56
Minimum Outdoor Heating Temperature	-22°F / -30°C
Air Handler
Dimensions (WxDxH) (in.)	27.56 x 19.92 x 7.87
Weight	39.46 Lbs
Air Flow (Turbo/H/M/L) CFM	400.2 / 323.7 / 264.9 / 176.6
Noise Level (/H/M/L) dB	32.5 / 31 / 29.5
Technical Specification
Style	Concealed Duct Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	21.4
EER2	13.4
Cooling Capacity (BTU)	9000
Cooling Range (BTU)	3400~13500
Cooling Input Range (W)	145~1200
Cooling Current Range (A)	1.3~5.5
Heating Capacity (BTU)	10000
Heating Range (BTU)	3800~16200
Heating Input Range (W)	260~1450
Heating Current Range (A)	1.9~6.5
HSPF2-4	12.5
HSPF2-5	9.7
COP W/W	3.53
Minimum Circuit Ampacity (A)	15
Max. Fuse (A)	15
Refrigerant Type / Charge oz	R454B / 35.27
Refrigerant Pre-charge	25 Ft.
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	10 Years Compressor / 5 Years Parts
